Model

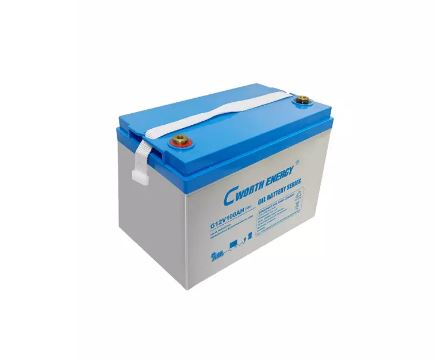

G-12V
100AH

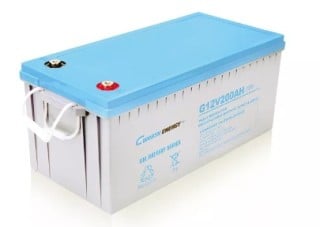

G-12V 200AH

Cells Per Unit

6

6

Voltage Per Unit

12

12

Capacity

100Ah@10hr-rate to 1.80V per cell @25℃

200Ah@10hr-rate
to 1.80V per cell @25℃

Max. Discharge Current

1000A(5 sec)

2000A(5
sec)

Internal Resistance

Approx. 5.0Ω

Approx.
4.0Ω

Recommended Maximum Charging Current Limit

30A

60A

Operating Temperature Range

Discharge: -20℃~60℃
Charge: 10℃~50℃ Storage: -20℃~60℃

Discharge:
-20℃~60℃ Charge: 10℃~50℃
Storage: -20℃~60℃

Normal Operating Temperature Range

25℃±5℃

25℃±5℃

Float Charging Voltage

13.6 to 13.8V DC/unit Average at 25℃

13.6 to
13.8V DC/unit Average at 25℃

Equalazation and Cycle Sevice

14.4 to 14.6V DC/unit Average at 25℃

14.4 to
14.6V DC/unit Average at 25℃

Self Discharge

GEL batteries can be stored for more than 6
month at 25℃. Self-discharge ratio less than 3% per month
at 25℃. Please charge

batteries before using.

GEL
batteries can be stored for more than 6 month at 25℃.
Self-discharge ratio less than 3% per month at 25℃.
Please charge

batteries
before using.

Weight

27.8kg

56kg

Size

330×171×218mm

522×219×240mm
